Aluminum-based
Aluminum alloy and its composite materials with low density, high specific strength, corrosion resistance and easy surface treatment, etc., is a cost-effective lightweight materials, in recent years, the market demand is strong, the application and development of aluminum alloy powder materials is on the rise.
MS1(1.2709)
Features:

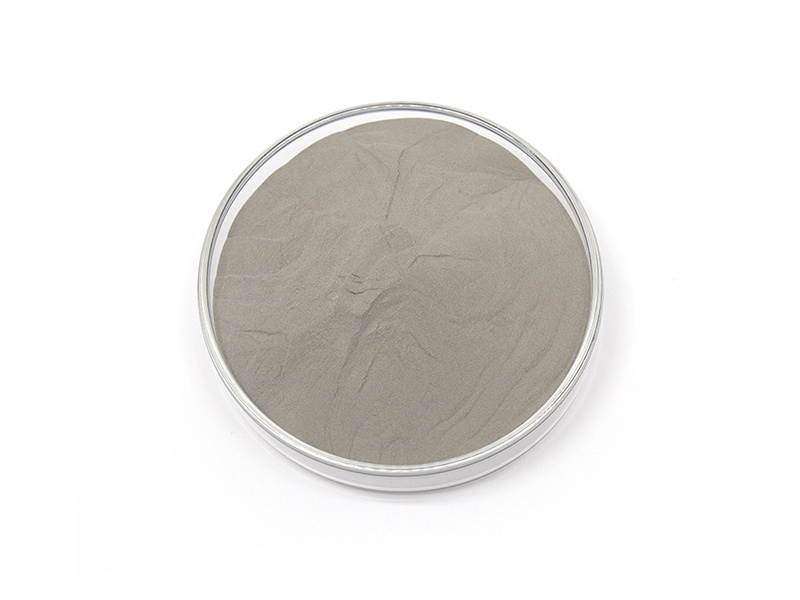

Gas atomization process, spherical powder, low oxygen content, uniform particle size, super fine powder, high density, good liquidity.
Application:
3D printing, MIM (metal injection molding), HIP (Hot isostatic pressing), SLM (selective laser melting), EBM (electron beam melting), DLD (laser deposition), PM (powder metallurgy)
Model：18Ni300
- 00Ni18Co9Mo5TiAl（GB/T）
- MS1
- 18%Ni Maraging300（M300）
- A579/579M-17A（ASTM）
- SAE AMS 6514
- MIL-S-46850D
- 1.2709 （EN）
- X3NiCoMoTi 18-9-5
| Partice Size | Oxygen Content | Apparent Density | Hall of flow rate | Tapping Density |
Chemical composition（wt%）
| Code | Chemical Composition（wt%） | ||||||||||
| Main Element | Other ≯ | Fe | |||||||||
| Ni | Co | Mo | Ti | Al | C | P | S | Si | Mn | ||
| 18Ni300 | 18.0-19.0 | 8.5-9.5 | 4.6-5.2 | 0.5-0.8 | 0.05-0.15 | 0.03 | 0.01 | 0.01 | 0.1 | 0.1 | Bal. |
Physical indicators
| Particle Size | Tapping Density(g/cm³) | Hall Flow Rate(s/50g) | ppm |
Particle Size Distribution(μm) |
||
| D10 | D50 | D90 | ||||
| 53-150μm | 4.5-4.8 | ≤25 | ≤300 | 56-66 | 90-102 | 135-155 |
| 15-45μm | 4.4-4.8 | ≤25 | ≤300 | 16-20 | 27-32 | 47-51 |
| 15-53μm | 4.4-4.9 | ≤25 | ≤300 | 17-22 | 30-34 | 48-55 |
| 20-50μm | 4.3-4.9 | ≤25 | ≤300 | 20-25 | 32-37 | 51-61 |
Application areas
